1. Basics of Foam Generation and the Duty in Lightweight Concrete Systems

1.1 Principles of Air Entrainment and Mobile Structure Development

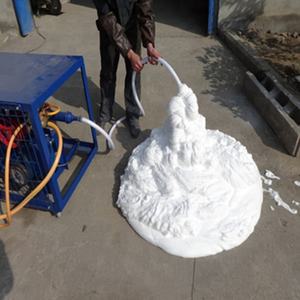

(Lightweight Concrete Foam Generators)

Lightweight concrete, a class of construction materials defined by lowered thickness and boosted thermal insulation, relies essentially on the regulated introduction of air or gas gaps within a cementitious matrix– a process called foaming.

The production of these consistently dispersed, stable air cells is attained via using a specialized tool referred to as a foam generator, which generates fine, microscale bubbles that are consequently blended into the concrete slurry.

These bubbles, usually varying from 50 to 500 micrometers in size, end up being completely entrained upon cement hydration, resulting in a cellular concrete structure with substantially lower device weight– typically in between 300 kg/m six and 1,800 kg/m FOUR– contrasted to conventional concrete (~ 2,400 kg/m ³).

The foam generator is not merely a complementary device yet a vital design part that establishes the quality, consistency, and efficiency of the last lightweight concrete item.

The procedure starts with a fluid frothing agent, normally a protein-based or synthetic surfactant solution, which is presented into the generator where it is mechanically or pneumatically spread right into a thick foam via high shear or pressed air injection.

The security and bubble dimension distribution of the produced foam straight affect key product homes such as compressive strength, thermal conductivity, and workability.

1.2 Classification and Functional Systems of Foam Generators

Foam generators are generally categorized into three primary types based upon their operational principles: low-pressure (or wet-film), high-pressure (or vibrant), and rotary (or centrifugal) systems.

Low-pressure generators utilize a porous medium– such as a fine mesh, textile, or ceramic plate– whereby compressed air is required, creating bubbles as the lathering remedy moves over the surface area.

This technique produces fairly large, much less consistent bubbles and is commonly made use of for lower-grade applications where exact control is less crucial.

High-pressure systems, on the other hand, utilize a nozzle-based design where a high-velocity stream of pressed air shears the lathering liquid into a fine, homogeneous foam with slim bubble size distribution.

These systems supply remarkable control over foam density and security, making them optimal for structural-grade light-weight concrete and precast applications.

( Lightweight Concrete Foam Generators)

Rotary foam generators utilize a spinning disk or drum that flings the lathering solution right into a stream of air, producing bubbles through mechanical dispersion.

While much less accurate than high-pressure systems, rotary generators are valued for their robustness, convenience of maintenance, and continuous outcome, appropriate for large-scale on-site putting procedures.

The option of foam generator type depends on project-specific needs, including desired concrete thickness, manufacturing volume, and performance requirements.

2. Product Science Behind Foam Stability and Concrete Performance

2.1 Foaming Agents and Interfacial Chemistry

The efficiency of a foam generator is inherently connected to the chemical composition and physical habits of the foaming agent.

Frothing agents are surfactants that reduce the surface area stress of water, making it possible for the formation of steady air-liquid user interfaces.

Protein-based agents, stemmed from hydrolyzed keratin or albumin, produce durable, flexible foam movies with outstanding security and are commonly preferred in architectural applications.

Synthetic agents, such as alkyl sulfonates or ethoxylated alcohols, supply faster foam generation and reduced price however may produce less secure bubbles under extended blending or damaging ecological problems.

The molecular framework of the surfactant identifies the thickness and mechanical stamina of the lamellae (thin liquid films) bordering each bubble, which have to stand up to coalescence and drain throughout blending and healing.

Additives such as thickness modifiers, stabilizers, and pH barriers are typically included right into frothing solutions to boost foam perseverance and compatibility with cement chemistry.

2.2 Impact of Foam Characteristics on Concrete Properties

The physical features of the generated foam– bubble size, size distribution, air web content, and foam thickness– directly dictate the macroscopic habits of lightweight concrete.

Smaller sized, uniformly dispersed bubbles improve mechanical strength by reducing stress and anxiety focus points and producing a much more uniform microstructure.

Conversely, bigger or uneven bubbles can serve as defects, reducing compressive strength and raising permeability.

Foam stability is just as crucial; early collapse or coalescence during blending cause non-uniform density, partition, and reduced insulation performance.

The air-void system also impacts thermal conductivity, with finer, closed-cell frameworks offering exceptional insulation due to entraped air’s low thermal diffusivity.

Additionally, the water material of the foam influences the water-cement ratio of the final mix, necessitating exact calibration to prevent compromising the concrete matrix or delaying hydration.

Advanced foam generators now incorporate real-time surveillance and feedback systems to keep constant foam outcome, ensuring reproducibility across sets.

3. Integration in Modern Building And Construction and Industrial Applications

3.1 Architectural and Non-Structural Uses of Foamed Concrete

Lightweight concrete generated by means of foam generators is utilized throughout a wide spectrum of construction applications, varying from insulation panels and void filling to bearing walls and sidewalk systems.

In building envelopes, foamed concrete supplies superb thermal and acoustic insulation, contributing to energy-efficient layouts and decreased HVAC loads.

Its low density also lowers structural dead load, allowing for smaller sized foundations and longer spans in high-rise and bridge construction.

In civil design, it is made use of for trench backfilling, tunneling, and slope stablizing, where its self-leveling and low-stress characteristics protect against ground disruption and boost safety.

Precast producers utilize high-precision foam generators to generate light-weight blocks, panels, and building aspects with limited dimensional resistances and constant top quality.

Furthermore, foamed concrete exhibits intrinsic fire resistance as a result of its reduced thermal conductivity and lack of organic components, making it suitable for fire-rated settings up and passive fire security systems.

3.2 Automation, Scalability, and On-Site Production Systems

Modern building and construction needs rapid, scalable, and trusted production of light-weight concrete, driving the integration of foam generators right into automatic batching and pumping systems.

Fully automated plants can integrate foam generation with cement mixing, water dosing, and additive injection, making it possible for constant production with marginal human treatment.

Mobile foam generator devices are progressively released on building websites, permitting on-demand manufacture of foamed concrete straight at the point of usage, decreasing transport expenses and material waste.

These systems are commonly geared up with electronic controls, remote surveillance, and data logging capacities to make certain conformity with design specs and top quality standards.

The scalability of foam generation technology– from little mobile systems to industrial-scale systems– sustains its fostering in both created and arising markets, advertising sustainable structure techniques internationally.

4. Technical Innovations and Future Directions in Foam Generation

4.1 Smart Foam Generators and Real-Time Refine Control

Arising advancements in foam generator style focus on enhancing accuracy, performance, and adaptability through digitalization and sensor integration.

Smart foam generators equipped with stress sensing units, circulation meters, and optical bubble analyzers can dynamically adjust air-to-liquid proportions and screen foam quality in real time.

Artificial intelligence formulas are being discovered to anticipate foam behavior based on environmental conditions, raw material variants, and historic efficiency data.

Such advancements intend to minimize batch-to-batch irregularity and enhance product performance, specifically in high-stakes applications like nuclear shielding or offshore construction.

4.2 Sustainability, Environmental Influence, and Green Material Assimilation

As the building and construction market moves toward decarbonization, foam generators play a role in decreasing the ecological footprint of concrete.

By decreasing product thickness, less concrete is needed per unit volume, straight minimizing CO two discharges connected with concrete manufacturing.

Moreover, lathered concrete can integrate additional cementitious products (SCMs) such as fly ash, slag, or silica fume, boosting sustainability without endangering performance.

Research study is also underway to create bio-based frothing agents stemmed from eco-friendly sources, decreasing reliance on petrochemical surfactants.

Future advancements might include energy-efficient foam generation techniques, assimilation with carbon capture technologies, and recyclable concrete solutions allowed by secure mobile frameworks.

Finally, the light-weight concrete foam generator is even more than a mechanical device– it is an essential enabler of innovative material engineering in modern-day building.

By precisely managing the style of air gaps at the microscale, it changes traditional concrete right into a multifunctional, sustainable, and high-performance product.

As technology develops, foam generators will remain to drive technology in structure scientific research, framework durability, and environmental stewardship.
