1. Material Attributes and Structural Style

1.1 Structure and Crystalline Phases of Alumina

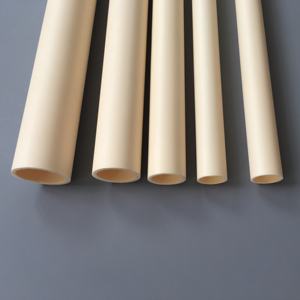

( Alumina Ceramic Tubes)

Alumina (Al Two O ₃) ceramic tubes are mostly produced from high-purity light weight aluminum oxide, with pureness degrees usually ranging from 90% to 99.8%, depending upon the desired application.

The leading crystalline phase in totally dense, high-temperature sintered tubes is α-alumina (corundum), which exhibits a trigonal crystal structure and exceptional thermodynamic stability.

This phase change from precursor hydroxides (e.g., boehmite or gibbsite) to α-alumina occurs above 1100 ° C and leads to a dense, interlacing microstructure that gives exceptional mechanical strength and chemical resistance.

Higher pureness grades (≥ 99.5%) maximize hardness, put on resistance, and dielectric efficiency, while lower-purity solutions may integrate additional phases like mullite or glassy grain limit stages to decrease expense or tailor thermal expansion.

The ability to manage grain dimension, porosity, and phase structure during processing enables designers to tweak alumina tubes for specific functional requirements throughout varied industrial domain names.

1.2 Mechanical, Thermal, and Electrical Feature

Alumina ceramic tubes display an unique combination of physical homes that make them vital sought after engineering environments.

With a Vickers solidity surpassing 1500 HV, they are extremely resistant to abrasion and erosion, surpassing most metals and polymers in wear-prone systems.

Their compressive toughness can get to 2000 MPa, enabling architectural use under high mechanical loads, while flexural stamina commonly varies from 300 to 500 MPa, depending upon density and surface coating.

Thermally, alumina maintains stability approximately 1700 ° C in oxidizing ambiences, with a reduced coefficient of thermal growth (~ 8 ppm/K), contributing to superb thermal shock resistance when appropriately created.

Although its thermal conductivity (~ 30 W/(m · K)) is modest contrasted to metals or aluminum nitride, it is sufficient for several high-temperature applications where electrical insulation and structural integrity are focused on.

Electrically, alumina is an impressive insulator with quantity resistivity > 10 ¹⁴ Ω · centimeters and high dielectric toughness (> 15 kV/mm), making it suitable for electrical feedthroughs, sensing unit real estates, and high-voltage insulation.

( Alumina Ceramic Tubes)

2. Production Processes and Dimensional Control

2.1 Shaping and Creating Methods

The production of alumina ceramic tubes involves innovative forming approaches tailored to attain specific measurements, wall surface thickness harmony, and surface top quality.

Typical strategies include extrusion, isostatic pressing, and slip spreading, each fit to various dimension varieties and efficiency demands.

Extrusion is commonly made use of for long, straight tubes with regular cross-sections, where a plasticized alumina paste is compelled with a die and cut to length prior to drying out and sintering.

For high-precision or thin-walled tubes, cool isostatic pressing (CIP) uses consistent pressure from all directions to compact green bodies, minimizing distortion and enhancing thickness homogeneity.

Slip spreading, including the deposition of a colloidal alumina suspension (slip) onto a permeable plaster mold, is optimal for facility or large-diameter geometries with variable wall thickness.

After developing, tubes undertake mindful drying out to stop fracturing, adhered to by binder burnout and high-temperature sintering (1500– 1650 ° C )to attain full densification and dimensional security.

2.2 Ending Up and Quality Control

Post-sintering operations such as centerless grinding, splashing, and brightening are utilized to accomplish limited resistances, smooth surface coatings, and specific internal and external sizes.

Tolerances as limited as ± 0.01 mm are achievable for vital applications in semiconductor handling or logical instrumentation.

Surface area roughness can be lowered to Ra < 0.1 µm, decreasing fragment trapping and boosting compatibility with ultra-high vacuum cleaner (UHV) or cleanroom atmospheres.

Non-destructive screening techniques– including ultrasonic evaluation, X-ray radiography, and dye penetrant testing– guarantee architectural stability and lack of cracks or voids.

Dimensional width making use of coordinate measuring devices (CMM) or laser scanning confirms compliance with design specs, particularly for custom or high-volume production runs.

3. Functional Efficiency in Harsh Environments

3.1 Resistance to Thermal and Chemical Degradation

One of one of the most engaging benefits of alumina ceramic tubes is their capacity to endure severe thermal and chemical problems where steels and polymers fall short.

They stay dimensionally secure and mechanically robust in continuous service at temperatures above 1500 ° C, making them suitable for heater linings, thermocouple security sheaths, and glowing heating unit tubes.

Their inertness to molten steels (e.g., aluminum, zinc, and non-ferrous alloys), liquified salts, and numerous acids (other than hydrofluoric and hot phosphoric acid) allows usage in metallurgical and chemical processing equipment.

In oxidizing and decreasing environments, alumina does not deteriorate or catalyze undesirable responses, maintaining procedure purity in semiconductor and glass manufacturing.

This chemical inertness additionally protects against contamination in high-purity fluid taking care of systems, consisting of those utilized in pharmaceutical and food handling sectors.

3.2 Electric Insulation and Plasma Resistance

In electric and plasma atmospheres, alumina tubes serve as insulating barriers that keep circuit honesty under high voltage and raised temperature level.

They are made use of in high-intensity discharge (HID) lamps, where they have ionized gases at temperature levels surpassing 1000 ° C while holding up against electrical potentials of several kilovolts.

In plasma etching and deposition systems, alumina tubes act as dielectric home windows or gas circulation parts, standing up to ion bombardment and thermal cycling without fracturing or outgassing.

Their reduced dielectric loss and high arc resistance protect against electrical monitoring and malfunction, ensuring lengthy life span in switchgear and power transmission parts.

These residential or commercial properties are important in keeping process stability and tools reliability in advanced production and energy systems.

4. Industrial and Emerging Applications

4.1 High-Temperature and Commercial Processing Equipments

Alumina ceramic tubes are essential to a large range of commercial processes that require longevity under extreme conditions.

In thermal handling, they function as safety sheaths for thermocouples and burner in kilns, heating systems, and warmth treatment devices, protecting sensitive components from destructive ambiences and mechanical wear.

In liquid handling, they deliver hostile chemicals, slurries, and high-temperature gases in petrochemical refineries, desalination plants, and waste incineration systems.

Their resistance to thermal shock enables rapid heating and cooling cycles without failure, a vital advantage in cyclic commercial operations.

In glass manufacturing, alumina tubes direct liquified glass circulations and support forming tools, resisting erosion from thick, high-temperature thaws.

4.2 Advanced Technologies and Future Combination

Beyond conventional industrial uses, alumina tubes are discovering new roles in sophisticated innovations.

In semiconductor construction, ultra-pure alumina tubes are utilized in chemical vapor deposition (CVD) activators and ion implantation systems, where fragment generation and metallic contamination have to be lessened.

In medical devices, biocompatible alumina tubes function as insulating elements in surgical tools, dental implants, and diagnostic sensors.

Study is discovering functionalized alumina tubes with ingrained sensing units or conductive traces for wise structural monitoring in aerospace and power systems.

Additive production (3D printing) of alumina is becoming an approach to generate intricate tube geometries with internal networks or rated compositions, making it possible for next-generation warm exchangers and microreactors.

As markets press toward higher efficiency, cleaner procedures, and higher integrity, alumina ceramic tubes remain to evolve as allowing elements in the framework of modern technology.

In summary, alumina ceramic tubes represent a fully grown yet dynamically progressing course of engineered materials, integrating remarkable thermal, mechanical, and electrical efficiency in a single not natural channel.

Their versatility throughout severe atmospheres ensures their continued importance in both developed commercial systems and emerging state-of-the-art applications.
