1. Product Principles and Structural Characteristics of Alumina Ceramics

1.1 Make-up, Crystallography, and Stage Security

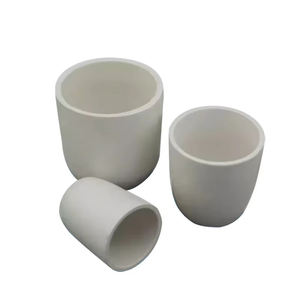

(Alumina Crucible)

Alumina crucibles are precision-engineered ceramic vessels fabricated mainly from aluminum oxide (Al two O FIVE), one of one of the most extensively made use of advanced porcelains due to its outstanding combination of thermal, mechanical, and chemical stability.

The leading crystalline phase in these crucibles is alpha-alumina (α-Al ₂ O SIX), which belongs to the corundum framework– a hexagonal close-packed arrangement of oxygen ions with two-thirds of the octahedral interstices inhabited by trivalent light weight aluminum ions.

This dense atomic packaging leads to strong ionic and covalent bonding, giving high melting factor (2072 ° C), exceptional hardness (9 on the Mohs scale), and resistance to sneak and contortion at raised temperatures.

While pure alumina is suitable for the majority of applications, trace dopants such as magnesium oxide (MgO) are usually added during sintering to prevent grain growth and enhance microstructural harmony, therefore improving mechanical stamina and thermal shock resistance.

The phase purity of α-Al two O three is important; transitional alumina phases (e.g., γ, δ, θ) that create at reduced temperature levels are metastable and undergo volume adjustments upon conversion to alpha stage, possibly resulting in breaking or failing under thermal cycling.

1.2 Microstructure and Porosity Control in Crucible Construction

The performance of an alumina crucible is exceptionally affected by its microstructure, which is figured out during powder handling, forming, and sintering phases.

High-purity alumina powders (commonly 99.5% to 99.99% Al ₂ O THREE) are shaped into crucible kinds making use of techniques such as uniaxial pushing, isostatic pressing, or slip casting, adhered to by sintering at temperatures between 1500 ° C and 1700 ° C.

During sintering, diffusion mechanisms drive fragment coalescence, lowering porosity and enhancing thickness– preferably attaining > 99% academic thickness to reduce leaks in the structure and chemical infiltration.

Fine-grained microstructures improve mechanical stamina and resistance to thermal anxiety, while regulated porosity (in some specific grades) can improve thermal shock resistance by dissipating pressure power.

Surface area coating is likewise crucial: a smooth interior surface minimizes nucleation sites for undesirable reactions and assists in easy elimination of solidified products after processing.

Crucible geometry– consisting of wall surface thickness, curvature, and base design– is optimized to balance warm transfer effectiveness, architectural honesty, and resistance to thermal gradients throughout quick heating or cooling.

( Alumina Crucible)

2. Thermal and Chemical Resistance in Extreme Environments

2.1 High-Temperature Performance and Thermal Shock Habits

Alumina crucibles are regularly used in environments surpassing 1600 ° C, making them crucial in high-temperature materials study, metal refining, and crystal growth procedures.

They display reduced thermal conductivity (~ 30 W/m · K), which, while restricting warm transfer rates, additionally supplies a level of thermal insulation and assists preserve temperature gradients essential for directional solidification or area melting.

A vital challenge is thermal shock resistance– the capacity to endure sudden temperature changes without breaking.

Although alumina has a reasonably low coefficient of thermal expansion (~ 8 × 10 ⁻⁶/ K), its high rigidity and brittleness make it susceptible to crack when based on steep thermal gradients, particularly during rapid heating or quenching.

To alleviate this, users are encouraged to adhere to regulated ramping methods, preheat crucibles slowly, and avoid straight exposure to open flames or cold surface areas.

Advanced qualities include zirconia (ZrO TWO) strengthening or rated make-ups to enhance fracture resistance through devices such as stage transformation strengthening or recurring compressive stress generation.

2.2 Chemical Inertness and Compatibility with Reactive Melts

Among the specifying benefits of alumina crucibles is their chemical inertness toward a large range of liquified steels, oxides, and salts.

They are very resistant to basic slags, liquified glasses, and many metallic alloys, consisting of iron, nickel, cobalt, and their oxides, which makes them ideal for usage in metallurgical evaluation, thermogravimetric experiments, and ceramic sintering.

Nonetheless, they are not globally inert: alumina responds with strongly acidic changes such as phosphoric acid or boron trioxide at heats, and it can be corroded by molten antacid like salt hydroxide or potassium carbonate.

Particularly essential is their communication with light weight aluminum metal and aluminum-rich alloys, which can decrease Al two O five by means of the response: 2Al + Al ₂ O FOUR → 3Al two O (suboxide), causing pitting and ultimate failing.

Likewise, titanium, zirconium, and rare-earth metals show high sensitivity with alumina, creating aluminides or complex oxides that endanger crucible integrity and infect the thaw.

For such applications, alternative crucible materials like yttria-stabilized zirconia (YSZ), boron nitride (BN), or molybdenum are liked.

3. Applications in Scientific Research and Industrial Processing

3.1 Function in Products Synthesis and Crystal Development

Alumina crucibles are central to countless high-temperature synthesis routes, including solid-state responses, change growth, and melt handling of useful porcelains and intermetallics.

In solid-state chemistry, they function as inert containers for calcining powders, synthesizing phosphors, or preparing forerunner products for lithium-ion battery cathodes.

For crystal development methods such as the Czochralski or Bridgman methods, alumina crucibles are utilized to contain molten oxides like yttrium aluminum garnet (YAG) or neodymium-doped glasses for laser applications.

Their high pureness guarantees minimal contamination of the growing crystal, while their dimensional stability supports reproducible development conditions over extended durations.

In flux growth, where solitary crystals are expanded from a high-temperature solvent, alumina crucibles must stand up to dissolution by the flux tool– typically borates or molybdates– needing cautious option of crucible quality and processing specifications.

3.2 Usage in Analytical Chemistry and Industrial Melting Workflow

In logical labs, alumina crucibles are basic devices in thermogravimetric analysis (TGA) and differential scanning calorimetry (DSC), where accurate mass dimensions are made under controlled ambiences and temperature level ramps.

Their non-magnetic nature, high thermal security, and compatibility with inert and oxidizing settings make them ideal for such precision measurements.

In commercial setups, alumina crucibles are employed in induction and resistance heaters for melting precious metals, alloying, and casting operations, particularly in precious jewelry, oral, and aerospace component manufacturing.

They are additionally used in the manufacturing of technological porcelains, where raw powders are sintered or hot-pressed within alumina setters and crucibles to prevent contamination and make certain uniform heating.

4. Limitations, Dealing With Practices, and Future Material Enhancements

4.1 Operational Restrictions and Best Practices for Longevity

In spite of their robustness, alumina crucibles have distinct operational restrictions that have to be appreciated to guarantee safety and performance.

Thermal shock continues to be the most usual root cause of failing; therefore, progressive home heating and cooling cycles are vital, specifically when transitioning with the 400– 600 ° C variety where residual tensions can gather.

Mechanical damage from mishandling, thermal biking, or contact with difficult materials can initiate microcracks that propagate under anxiety.

Cleaning up must be carried out thoroughly– preventing thermal quenching or unpleasant methods– and used crucibles ought to be inspected for indicators of spalling, staining, or contortion before reuse.

Cross-contamination is another worry: crucibles utilized for responsive or toxic materials must not be repurposed for high-purity synthesis without extensive cleaning or should be disposed of.

4.2 Arising Trends in Composite and Coated Alumina Equipments

To prolong the capacities of typical alumina crucibles, scientists are establishing composite and functionally rated materials.

Examples include alumina-zirconia (Al two O SIX-ZrO ₂) composites that boost sturdiness and thermal shock resistance, or alumina-silicon carbide (Al two O TWO-SiC) variations that improve thermal conductivity for more consistent heating.

Surface area finishings with rare-earth oxides (e.g., yttria or scandia) are being checked out to develop a diffusion obstacle versus reactive steels, thus expanding the range of compatible thaws.

Additionally, additive production of alumina elements is arising, enabling personalized crucible geometries with inner networks for temperature surveillance or gas flow, opening up new opportunities in procedure control and activator style.

In conclusion, alumina crucibles continue to be a keystone of high-temperature innovation, valued for their integrity, purity, and versatility throughout clinical and commercial domain names.

Their proceeded development through microstructural design and hybrid product layout makes sure that they will stay important devices in the development of materials scientific research, energy innovations, and advanced production.
