1. Product Basics and Microstructural Qualities of Alumina Ceramics

1.1 Structure, Purity Grades, and Crystallographic Characteristic

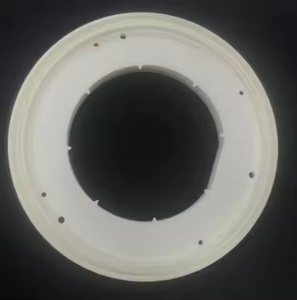

(Alumina Ceramic Wear Liners)

Alumina (Al Two O FOUR), or aluminum oxide, is among one of the most widely made use of technical ceramics in industrial design due to its exceptional balance of mechanical strength, chemical security, and cost-effectiveness.

When crafted into wear linings, alumina porcelains are normally produced with pureness levels ranging from 85% to 99.9%, with higher purity representing boosted solidity, wear resistance, and thermal efficiency.

The dominant crystalline phase is alpha-alumina, which takes on a hexagonal close-packed (HCP) framework identified by strong ionic and covalent bonding, contributing to its high melting factor (~ 2072 ° C )and low thermal conductivity.

Microstructurally, alumina ceramics consist of fine, equiaxed grains whose dimension and circulation are regulated during sintering to enhance mechanical properties.

Grain dimensions typically range from submicron to a number of micrometers, with finer grains generally enhancing crack sturdiness and resistance to fracture breeding under rough filling.

Small additives such as magnesium oxide (MgO) are typically introduced in trace amounts to prevent abnormal grain growth during high-temperature sintering, making sure consistent microstructure and dimensional stability.

The resulting product exhibits a Vickers solidity of 1500– 2000 HV, dramatically surpassing that of hardened steel (typically 600– 800 HV), making it incredibly resistant to surface destruction in high-wear atmospheres.

1.2 Mechanical and Thermal Performance in Industrial Issues

Alumina ceramic wear linings are selected largely for their exceptional resistance to unpleasant, erosive, and gliding wear mechanisms prevalent in bulk product handling systems.

They have high compressive strength (approximately 3000 MPa), good flexural toughness (300– 500 MPa), and exceptional stiffness (Youthful’s modulus of ~ 380 GPa), enabling them to endure extreme mechanical loading without plastic contortion.

Although naturally weak contrasted to steels, their low coefficient of rubbing and high surface hardness minimize bit attachment and decrease wear prices by orders of magnitude relative to steel or polymer-based alternatives.

Thermally, alumina maintains architectural honesty approximately 1600 ° C in oxidizing environments, enabling usage in high-temperature handling atmospheres such as kiln feed systems, central heating boiler ducting, and pyroprocessing tools.

( Alumina Ceramic Wear Liners)

Its low thermal growth coefficient (~ 8 × 10 ⁻⁶/ K) adds to dimensional security throughout thermal cycling, minimizing the danger of breaking as a result of thermal shock when correctly installed.

Furthermore, alumina is electrically insulating and chemically inert to a lot of acids, alkalis, and solvents, making it suitable for corrosive atmospheres where metal liners would certainly weaken rapidly.

These consolidated homes make alumina ceramics excellent for protecting critical facilities in mining, power generation, cement manufacturing, and chemical processing sectors.

2. Manufacturing Processes and Style Assimilation Techniques

2.1 Forming, Sintering, and Quality Assurance Protocols

The manufacturing of alumina ceramic wear linings involves a series of precision production actions made to accomplish high thickness, marginal porosity, and constant mechanical efficiency.

Raw alumina powders are processed through milling, granulation, and forming strategies such as dry pressing, isostatic pushing, or extrusion, depending on the preferred geometry– floor tiles, plates, pipelines, or custom-shaped segments.

Environment-friendly bodies are after that sintered at temperature levels between 1500 ° C and 1700 ° C in air, advertising densification via solid-state diffusion and accomplishing loved one thickness going beyond 95%, commonly coming close to 99% of theoretical thickness.

Complete densification is critical, as recurring porosity serves as anxiety concentrators and increases wear and fracture under service conditions.

Post-sintering operations may include diamond grinding or lapping to accomplish tight dimensional tolerances and smooth surface coatings that reduce rubbing and fragment trapping.

Each batch undergoes extensive quality assurance, consisting of X-ray diffraction (XRD) for phase analysis, scanning electron microscopy (SEM) for microstructural analysis, and solidity and bend testing to confirm conformity with international requirements such as ISO 6474 or ASTM B407.

2.2 Mounting Techniques and System Compatibility Considerations

Reliable combination of alumina wear liners right into industrial devices calls for cautious focus to mechanical accessory and thermal development compatibility.

Typical installment techniques consist of glue bonding utilizing high-strength ceramic epoxies, mechanical securing with studs or supports, and embedding within castable refractory matrices.

Sticky bonding is widely used for level or delicately bent surfaces, offering uniform stress and anxiety circulation and resonance damping, while stud-mounted systems permit easy substitute and are liked in high-impact zones.

To suit differential thermal development between alumina and metal substrates (e.g., carbon steel), engineered voids, flexible adhesives, or compliant underlayers are included to stop delamination or cracking during thermal transients.

Developers should also take into consideration edge defense, as ceramic floor tiles are prone to chipping at exposed edges; options include diagonal sides, steel shadows, or overlapping floor tile arrangements.

Correct installation makes sure lengthy service life and makes the most of the protective feature of the lining system.

3. Use Mechanisms and Performance Analysis in Solution Environments

3.1 Resistance to Abrasive, Erosive, and Influence Loading

Alumina ceramic wear linings master environments controlled by 3 key wear mechanisms: two-body abrasion, three-body abrasion, and fragment disintegration.

In two-body abrasion, hard bits or surfaces straight gouge the lining surface, a common occurrence in chutes, hoppers, and conveyor shifts.

Three-body abrasion includes loose bits trapped between the liner and relocating product, resulting in rolling and scraping activity that progressively eliminates material.

Abrasive wear happens when high-velocity bits impinge on the surface, particularly in pneumatically-driven communicating lines and cyclone separators.

Due to its high hardness and reduced fracture strength, alumina is most reliable in low-impact, high-abrasion scenarios.

It does incredibly well against siliceous ores, coal, fly ash, and concrete clinker, where wear rates can be lowered by 10– 50 times compared to light steel liners.

Nevertheless, in applications including duplicated high-energy impact, such as primary crusher chambers, crossbreed systems integrating alumina floor tiles with elastomeric backings or metallic shields are typically utilized to take in shock and protect against fracture.

3.2 Area Testing, Life Cycle Analysis, and Failure Setting Evaluation

Performance assessment of alumina wear liners involves both research laboratory screening and field surveillance.

Standard examinations such as the ASTM G65 dry sand rubber wheel abrasion test give comparative wear indices, while tailored slurry disintegration rigs mimic site-specific problems.

In commercial setups, put on rate is commonly gauged in mm/year or g/kWh, with service life estimates based upon initial thickness and observed deterioration.

Failure modes consist of surface sprucing up, micro-cracking, spalling at edges, and complete floor tile dislodgement because of adhesive deterioration or mechanical overload.

Origin analysis frequently reveals setup errors, inappropriate grade choice, or unforeseen effect tons as primary contributors to premature failing.

Life process cost evaluation constantly shows that regardless of greater preliminary expenses, alumina liners offer premium overall price of possession because of extended replacement intervals, reduced downtime, and lower upkeep labor.

4. Industrial Applications and Future Technological Advancements

4.1 Sector-Specific Implementations Throughout Heavy Industries

Alumina ceramic wear linings are deployed across a wide range of commercial markets where product destruction poses operational and financial obstacles.

In mining and mineral handling, they safeguard transfer chutes, mill liners, hydrocyclones, and slurry pumps from unpleasant slurries including quartz, hematite, and other hard minerals.

In nuclear power plant, alumina ceramic tiles line coal pulverizer ducts, boiler ash hoppers, and electrostatic precipitator parts revealed to fly ash erosion.

Concrete makers utilize alumina liners in raw mills, kiln inlet areas, and clinker conveyors to battle the very unpleasant nature of cementitious materials.

The steel market uses them in blast furnace feed systems and ladle shrouds, where resistance to both abrasion and moderate thermal loads is important.

Even in less traditional applications such as waste-to-energy plants and biomass handling systems, alumina ceramics give long lasting protection versus chemically aggressive and coarse materials.

4.2 Emerging Trends: Composite Systems, Smart Liners, and Sustainability

Current research focuses on enhancing the durability and performance of alumina wear systems via composite layout.

Alumina-zirconia (Al ₂ O TWO-ZrO TWO) compounds take advantage of improvement toughening from zirconia to boost crack resistance, while alumina-titanium carbide (Al ₂ O THREE-TiC) grades provide improved efficiency in high-temperature moving wear.

An additional advancement involves installing sensing units within or beneath ceramic liners to keep track of wear development, temperature, and impact regularity– making it possible for anticipating upkeep and digital double combination.

From a sustainability point of view, the extended life span of alumina liners reduces material usage and waste generation, straightening with circular economic climate concepts in commercial procedures.

Recycling of invested ceramic liners right into refractory accumulations or building materials is additionally being checked out to decrease ecological impact.

To conclude, alumina ceramic wear linings stand for a cornerstone of modern industrial wear defense innovation.

Their exceptional solidity, thermal stability, and chemical inertness, incorporated with fully grown production and installment methods, make them important in combating material destruction throughout heavy industries.

As product scientific research developments and digital monitoring ends up being much more incorporated, the next generation of smart, resilient alumina-based systems will certainly even more improve operational efficiency and sustainability in unpleasant environments.
