1. Material Structures and Collaborating Layout

1.1 Inherent Characteristics of Constituent Phases

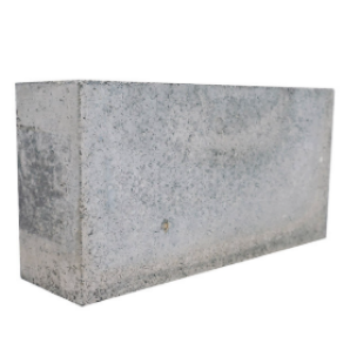

(Silicon nitride and silicon carbide composite ceramic)

Silicon nitride (Si six N FOUR) and silicon carbide (SiC) are both covalently bonded, non-oxide ceramics renowned for their remarkable efficiency in high-temperature, harsh, and mechanically demanding environments.

Silicon nitride exhibits exceptional fracture strength, thermal shock resistance, and creep security because of its special microstructure made up of lengthened β-Si six N ₄ grains that make it possible for crack deflection and linking mechanisms.

It preserves toughness up to 1400 ° C and has a relatively reduced thermal development coefficient (~ 3.2 × 10 ⁻⁶/ K), lessening thermal stresses during quick temperature modifications.

In contrast, silicon carbide uses superior solidity, thermal conductivity (as much as 120– 150 W/(m · K )for solitary crystals), oxidation resistance, and chemical inertness, making it excellent for abrasive and radiative heat dissipation applications.

Its broad bandgap (~ 3.3 eV for 4H-SiC) also gives exceptional electric insulation and radiation tolerance, valuable in nuclear and semiconductor contexts.

When integrated into a composite, these products show complementary actions: Si ₃ N four boosts sturdiness and damage resistance, while SiC improves thermal monitoring and wear resistance.

The resulting hybrid ceramic achieves an equilibrium unattainable by either stage alone, forming a high-performance structural product tailored for severe service problems.

1.2 Composite Style and Microstructural Engineering

The design of Si six N FOUR– SiC composites involves precise control over phase distribution, grain morphology, and interfacial bonding to maximize synergistic effects.

Usually, SiC is introduced as great particulate reinforcement (ranging from submicron to 1 µm) within a Si two N four matrix, although functionally rated or layered styles are additionally explored for specialized applications.

Throughout sintering– typically using gas-pressure sintering (GPS) or warm pressing– SiC particles influence the nucleation and growth kinetics of β-Si two N four grains, usually advertising finer and even more evenly oriented microstructures.

This improvement boosts mechanical homogeneity and reduces problem size, contributing to enhanced toughness and dependability.

Interfacial compatibility in between the two stages is crucial; because both are covalent porcelains with similar crystallographic balance and thermal expansion actions, they form coherent or semi-coherent borders that stand up to debonding under load.

Additives such as yttria (Y TWO O FOUR) and alumina (Al ₂ O SIX) are used as sintering aids to promote liquid-phase densification of Si two N four without compromising the security of SiC.

However, too much second stages can degrade high-temperature performance, so composition and processing should be enhanced to decrease glazed grain border films.

2. Handling Strategies and Densification Difficulties

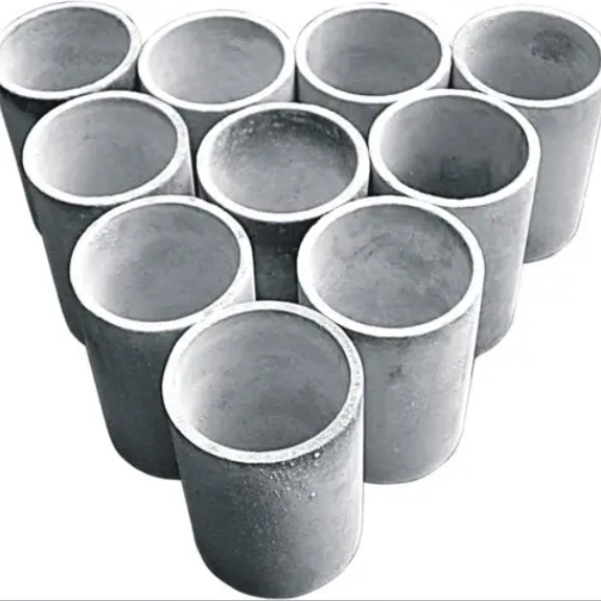

( Silicon nitride and silicon carbide composite ceramic)

2.1 Powder Prep Work and Shaping Methods

High-grade Si Five N FOUR– SiC composites begin with homogeneous mixing of ultrafine, high-purity powders utilizing damp ball milling, attrition milling, or ultrasonic diffusion in organic or aqueous media.

Accomplishing uniform diffusion is important to avoid heap of SiC, which can act as stress concentrators and decrease crack sturdiness.

Binders and dispersants are contributed to stabilize suspensions for forming methods such as slip spreading, tape spreading, or shot molding, depending upon the desired element geometry.

Green bodies are then carefully dried out and debound to get rid of organics before sintering, a process calling for controlled home heating rates to prevent cracking or buckling.

For near-net-shape manufacturing, additive methods like binder jetting or stereolithography are emerging, enabling complicated geometries formerly unattainable with conventional ceramic processing.

These approaches call for tailored feedstocks with enhanced rheology and eco-friendly toughness, often involving polymer-derived porcelains or photosensitive materials loaded with composite powders.

2.2 Sintering Systems and Phase Stability

Densification of Si ₃ N ₄– SiC compounds is challenging because of the solid covalent bonding and restricted self-diffusion of nitrogen and carbon at practical temperatures.

Liquid-phase sintering using rare-earth or alkaline planet oxides (e.g., Y TWO O ₃, MgO) lowers the eutectic temperature and enhances mass transportation via a short-term silicate melt.

Under gas pressure (commonly 1– 10 MPa N ₂), this melt facilitates rearrangement, solution-precipitation, and final densification while subduing decomposition of Si five N FOUR.

The presence of SiC affects viscosity and wettability of the fluid stage, potentially modifying grain growth anisotropy and final structure.

Post-sintering warmth therapies may be put on crystallize residual amorphous phases at grain boundaries, boosting high-temperature mechanical properties and oxidation resistance.

X-ray diffraction (XRD) and scanning electron microscopy (SEM) are consistently utilized to verify phase purity, absence of undesirable secondary phases (e.g., Si ₂ N TWO O), and uniform microstructure.

3. Mechanical and Thermal Performance Under Load

3.1 Toughness, Toughness, and Exhaustion Resistance

Si Four N ₄– SiC compounds demonstrate superior mechanical efficiency compared to monolithic porcelains, with flexural strengths surpassing 800 MPa and crack strength values reaching 7– 9 MPa · m ¹/ ².

The strengthening result of SiC fragments restrains dislocation motion and fracture proliferation, while the lengthened Si four N ₄ grains remain to provide toughening with pull-out and linking mechanisms.

This dual-toughening technique results in a product highly resistant to impact, thermal cycling, and mechanical fatigue– vital for turning components and structural components in aerospace and power systems.

Creep resistance stays outstanding approximately 1300 ° C, credited to the security of the covalent network and reduced grain boundary gliding when amorphous stages are minimized.

Solidity values typically vary from 16 to 19 Grade point average, providing outstanding wear and erosion resistance in abrasive environments such as sand-laden flows or sliding calls.

3.2 Thermal Administration and Ecological Durability

The addition of SiC significantly raises the thermal conductivity of the composite, often increasing that of pure Si five N ₄ (which varies from 15– 30 W/(m · K) )to 40– 60 W/(m · K) depending on SiC content and microstructure.

This improved warmth transfer capability allows for much more reliable thermal administration in components exposed to intense localized home heating, such as burning linings or plasma-facing parts.

The composite maintains dimensional security under steep thermal gradients, standing up to spallation and fracturing due to matched thermal expansion and high thermal shock specification (R-value).

Oxidation resistance is one more crucial advantage; SiC forms a protective silica (SiO ₂) layer upon direct exposure to oxygen at elevated temperatures, which better densifies and seals surface flaws.

This passive layer safeguards both SiC and Si Four N ₄ (which likewise oxidizes to SiO two and N ₂), ensuring long-term longevity in air, vapor, or combustion ambiences.

4. Applications and Future Technological Trajectories

4.1 Aerospace, Energy, and Industrial Equipment

Si Two N FOUR– SiC compounds are progressively released in next-generation gas turbines, where they enable higher operating temperature levels, enhanced fuel efficiency, and minimized cooling needs.

Parts such as generator blades, combustor linings, and nozzle overview vanes benefit from the product’s capacity to stand up to thermal biking and mechanical loading without substantial degradation.

In nuclear reactors, especially high-temperature gas-cooled reactors (HTGRs), these composites serve as fuel cladding or architectural assistances as a result of their neutron irradiation resistance and fission item retention capacity.

In industrial setups, they are utilized in liquified metal handling, kiln furnishings, and wear-resistant nozzles and bearings, where conventional steels would certainly fail prematurely.

Their lightweight nature (density ~ 3.2 g/cm SIX) additionally makes them eye-catching for aerospace propulsion and hypersonic automobile elements subject to aerothermal heating.

4.2 Advanced Production and Multifunctional Integration

Emerging research study concentrates on establishing functionally rated Si ₃ N ₄– SiC structures, where make-up varies spatially to optimize thermal, mechanical, or electromagnetic buildings across a solitary component.

Hybrid systems integrating CMC (ceramic matrix composite) styles with fiber reinforcement (e.g., SiC_f/ SiC– Si Three N FOUR) press the limits of damage resistance and strain-to-failure.

Additive production of these composites allows topology-optimized warm exchangers, microreactors, and regenerative cooling networks with interior lattice frameworks unachievable via machining.

Moreover, their integral dielectric properties and thermal security make them candidates for radar-transparent radomes and antenna home windows in high-speed systems.

As needs expand for materials that execute dependably under severe thermomechanical tons, Si five N FOUR– SiC compounds represent a critical advancement in ceramic engineering, combining toughness with performance in a single, sustainable system.

Finally, silicon nitride– silicon carbide composite ceramics exemplify the power of materials-by-design, leveraging the staminas of 2 advanced ceramics to produce a crossbreed system efficient in growing in the most serious operational settings.

Their continued development will play a central duty beforehand tidy power, aerospace, and commercial innovations in the 21st century.
