Discover the detailed guide to oil submersed transformers, including oil immersed power transformers and oil immersed distribution transformers. Discover their functioning concepts, kinds, benefits, and advancing function in wise grids and renewable resource.

1. Intro to Oil Submersed Transformers

In the complex internet of our modern-day electric grid, transformers play an important function, silently tipping voltage up and down to make sure electrical power can be transferred effectively over fars away and dispersed safely to our homes and markets. Amongst the numerous types available, the oil submersed transformer stands as a testament to tried and tested reliability and sturdiness. For years, these workhorses have formed the foundation of power systems worldwide.

An oil immersed transformer is a kind of electrical transformer that utilizes a specific protecting oil as both a coolant and an insulating tool. This layout is mostly used for tool to high-power applications, making it a foundation of electric framework. This guide delves deep into the world of oil submersed power transformers and oil immersed circulation transformers, exploring their innovation, applications, and their progressing duty in an era of digitalization and renewable resource.

1.1 What is an Oil Submersed Transformer?

At its core, an oil submersed transformer consists of a magnetic core and copper or aluminum windings housed inside a sealed tank filled with protecting oil. The key function of the oil is twofold:

1. Insulation: The oil has high dielectric strength, effectively shielding the high-voltage windings from the transformer’s core and based storage tank. This avoids short circuits and electric breakdowns.

2. Cooling: As the transformer operates, the windings create considerable heat because of I ² R losses. The circulating oil absorbs this warm, convects it to the transformer’s storage tank wall surfaces, and dissipates it into the surrounding air. Larger units usually include radiators or fins to raise the surface for extra effective air conditioning.

This dual-purpose use oil makes the oil submersed transformer remarkably efficient and robust, with the ability of taking care of high tons and holding up against transient overloads better than many dry-type choices.

1.2 Oil Immersed Power Transformer vs. Oil Immersed Circulation Transformer

While all these units are oil immersed transformers, they serve unique functions within the power system network. Recognizing the difference is important.

An oil immersed power transformer is a heavyweight, commonly made use of in transmission networks at creating stations and significant substations. Their main role is to “step-up” the voltage produced at the power plant to incredibly high levels (e.g., 138 kV, 230 kV, 500 kV and above) for efficient long-distance transmission, and to “step-down” the voltage at obtaining substations for additional distribution. They are characterized by their very high power ratings (commonly going beyond 100 MVA), intricate building, and on-load tap changers for voltage regulation.

An oil involved circulation transformer, on the other hand, executes the last action in the power delivery chain. It takes the tool voltage from the transmission lines (e.g., 11 kV, 33 kV) and tips it to the low voltages (e.g., 400/230 V) utilized by business and residential consumers. You frequently discover them on utility posts (pole-mounted) or on ground-level pads (pad-mounted). They are smaller sized, have lower power scores (commonly up to 2,500 kVA), and are created for optimal performance at lower, much more constant lots.

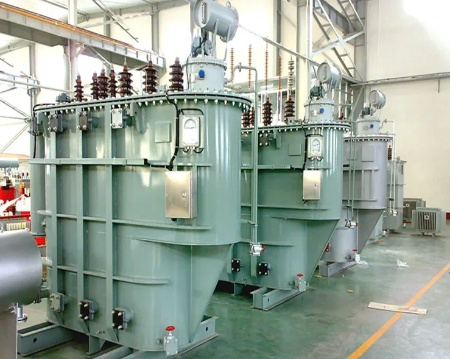

(Oil immersed power transformer)

2. Secret Advantages of Oil Submersed Transformers

The enduring appeal of the oil submersed transformer is not accidental. It provides a collection of engaging advantages that make it the favored choice for numerous demanding applications.

2.1 Superior Air Conditioning and Overload Capability

The premium thermal capacity of oil contrasted to air allows an oil submersed power transformer to manage and dissipate warm a lot more effectively. This converts to a greater overload capacity. Throughout durations of peak power demand, an oil immersed transformer can manage momentary overloads without suffering damages, an essential feature for maintaining grid stability. The oil’s circulation makes certain also heat circulation, preventing local locations that can break down insulation with time.

2.2 Enhanced Insulation and Long Service Life

The combination of high-grade mineral oil and thoroughly impregnated paper insulation produces a dielectric system of exceptional strength. This robust insulation system safeguards the transformer from voltage surges and transients, contributing to an operational life-span that can include 30-40 years or even more with correct maintenance. The secured tank also protects the interior parts from dampness, dust, and other atmospheric impurities.

2.3 High Efficiency and Cost-Effectiveness

For high-power applications, the oil submersed transformer is usually the most affordable option. The products utilized– mineral oil, steel tank, and copper/aluminum windings– supply a beneficial balance of efficiency and expense. The high performance of these transformers, specifically at their ranked load, causes reduced power losses over their lifetime, leading to significant cost savings for utility business and big commercial users.

3. Warm Topics and Future Trends

The world of oil submersed transformers is not static. It is continuously progressing to satisfy new challenges and integrate with modern innovations.

3.1 Eco-friendly and Fire-Resistant Oils

Environmental and safety concerns are driving a substantial shift away from traditional mineral oil. The marketplace is rapidly adopting oil immersed transformers full of biodegradable esters (artificial or all-natural). These oils offer a greater fire factor (making them K-class fireproof), are less harmful, and are readily eco-friendly, dramatically minimizing the environmental influence in instance of a leak. This fad is making oil immersed circulation transformers safer for setup in metropolitan locations and ecologically sensitive places.

3.2 Integration with Smart Grids and IoT

The contemporary oil immersed power transformer is coming to be an intelligent node in the wise grid. Sensors are being integrated to keep an eye on essential parameters in real-time, consisting of:

Dissolved Gas Evaluation (DGA): Finding mistake gases produced within the oil to predict incipient mistakes.

Temperature Level Surveillance: Tracking top-oil and hotspot temperatures.

Lots and Power Quality Monitoring.

This data, transferred via IoT (Internet of Things) platforms, enables anticipating upkeep, avoids unexpected interruptions, and maximizes transformer usage and life expectancy.

3.3 Supporting the Renewable Energy Transition

The international promote renewables is producing new demand for oil immersed transformers. Large-scale solar ranches and wind power setups need robust oil submersed power transformers to step up the generated voltage to transmission levels. In addition, the intermittent nature of renewables locations better anxiety on grid components, and the tried and tested reliability and overload ability of oil submersed transformers make them suitable for this crucial function.

4. Selection and Upkeep Ideal Practices

Selecting the right transformer and keeping it appropriately is key to a dependable power system.

4.1 Just how to Pick the Right Oil Immersed Transformer

Picking between an oil immersed power transformer and an oil submersed distribution transformer depends upon the application. Trick factors to consider include:

1. Voltage Degree and kVA Ranking: Suit the transformer’s specs to your system’s demands.

2. Application: Transmission substation, plant, or industrial circulation.

3. Location: Indoor vs. outside, environmental conditions, and fire security laws (which might influence the choice of shielding oil).

4. Performance Requirements: Adhere to regional performance requirements like DOE (USA) or EU CoC (Europe).

5. Budget plan: Think about both the first resources expense and the total price of possession, consisting of losses.

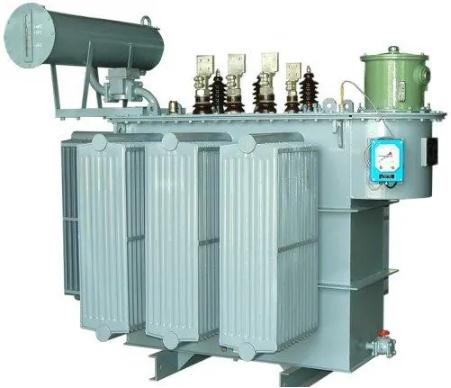

(Oil immersed distribution transformer)

4.2 Vital Upkeep for Durability

Aggressive upkeep is important for any oil immersed transformer. A detailed program should consist of:

1. Normal Oil Sampling and Screening: Periodic DGA and testing of dielectric stamina and dampness material are one of the most reliable ways to evaluate the health of the transformer.

2. Bushing and Insulation Examination: Visual look for cracks, contamination, or leaks.

3. Faucet Changer Upkeep: Normal inspection and servicing of on-load or off-load faucet changers.

4. Keep it Clean and Dry: Guaranteeing the storage tank exterior, radiators, and breathers are clean and functional.

The oil submersed transformer, in its roles as both a high-capacity oil immersed power transformer and an ubiquitous oil submersed circulation transformer, remains an irreplaceable component of our worldwide energy facilities. Its tested design, coupled with continuous technologies in protecting fluids and digital surveillance, ensures it will certainly remain to be a reliable, efficient, and smart solution for powering our globe for decades to find. As we construct the grids of the future, incorporating even more renewables and digital knowledge, the durable and versatile oil immersed transformer will certainly go to the heart of it.
