1. Material Structure and Structural Style

1.1 Glass Chemistry and Spherical Design

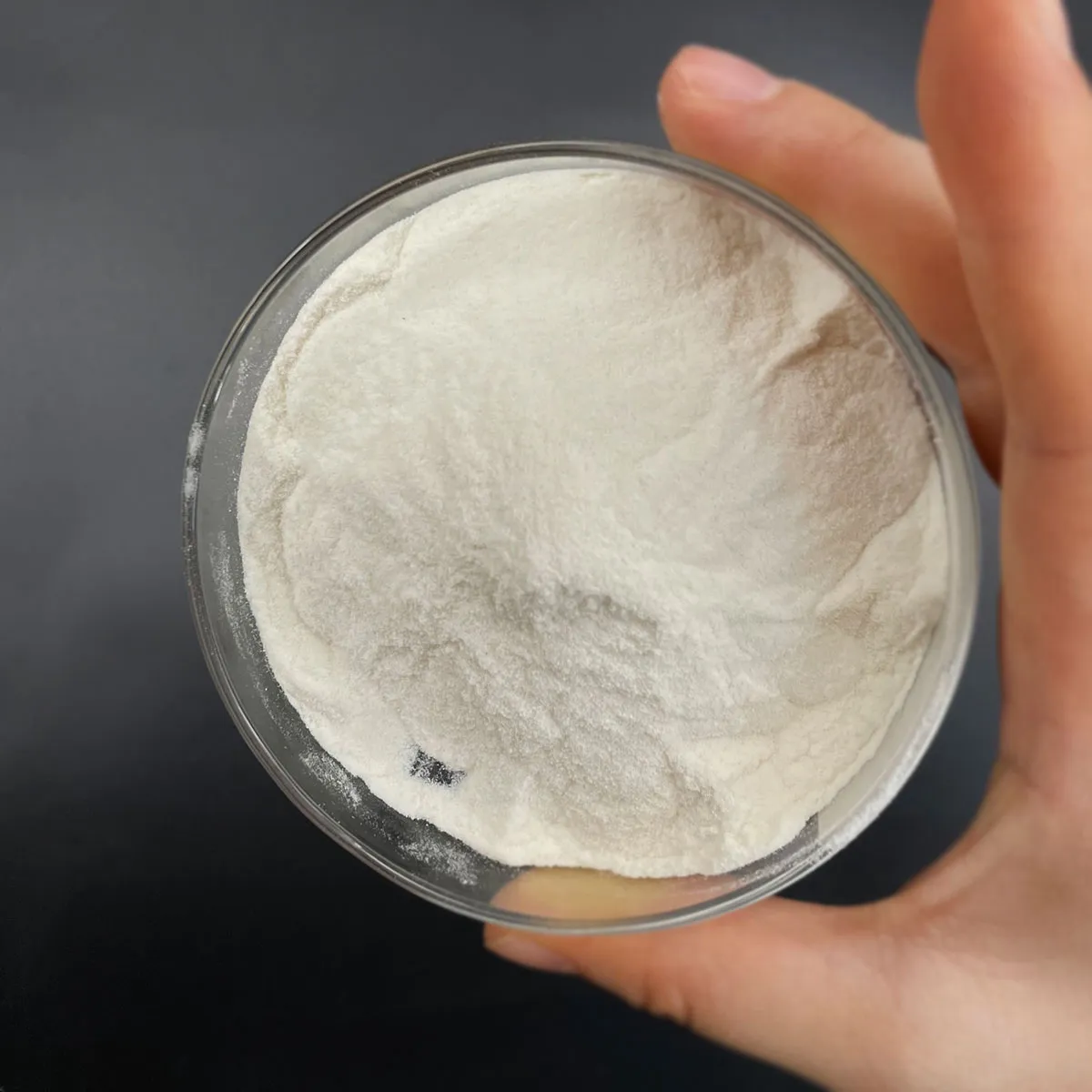

(Hollow glass microspheres)

Hollow glass microspheres (HGMs) are tiny, round bits composed of alkali borosilicate or soda-lime glass, typically ranging from 10 to 300 micrometers in diameter, with wall densities in between 0.5 and 2 micrometers.

Their defining function is a closed-cell, hollow interior that gives ultra-low thickness– usually listed below 0.2 g/cm six for uncrushed balls– while keeping a smooth, defect-free surface area important for flowability and composite assimilation.

The glass make-up is crafted to stabilize mechanical strength, thermal resistance, and chemical resilience; borosilicate-based microspheres provide premium thermal shock resistance and reduced alkali web content, decreasing reactivity in cementitious or polymer matrices.

The hollow framework is developed with a controlled expansion process during production, where precursor glass bits consisting of an unpredictable blowing representative (such as carbonate or sulfate compounds) are heated up in a heating system.

As the glass softens, internal gas generation develops inner stress, creating the particle to inflate into an ideal ball before quick air conditioning solidifies the framework.

This precise control over size, wall surface density, and sphericity enables predictable performance in high-stress design settings.

1.2 Thickness, Strength, and Failure Devices

A critical performance statistics for HGMs is the compressive strength-to-density proportion, which establishes their capacity to endure processing and solution lots without fracturing.

Industrial qualities are categorized by their isostatic crush stamina, varying from low-strength rounds (~ 3,000 psi) suitable for coverings and low-pressure molding, to high-strength variations exceeding 15,000 psi utilized in deep-sea buoyancy modules and oil well cementing.

Failure commonly occurs using elastic bending instead of fragile fracture, a habits governed by thin-shell auto mechanics and affected by surface area problems, wall surface uniformity, and inner pressure.

When fractured, the microsphere loses its insulating and light-weight buildings, highlighting the need for careful handling and matrix compatibility in composite style.

Regardless of their fragility under factor tons, the round geometry disperses stress evenly, enabling HGMs to stand up to substantial hydrostatic stress in applications such as subsea syntactic foams.

( Hollow glass microspheres)

2. Manufacturing and Quality Assurance Processes

2.1 Production Strategies and Scalability

HGMs are produced industrially making use of fire spheroidization or rotating kiln growth, both entailing high-temperature handling of raw glass powders or preformed grains.

In fire spheroidization, fine glass powder is injected into a high-temperature fire, where surface tension draws molten droplets right into balls while inner gases broaden them into hollow frameworks.

Rotating kiln methods include feeding precursor beads right into a turning heater, making it possible for continuous, massive manufacturing with tight control over fragment dimension circulation.

Post-processing steps such as sieving, air category, and surface treatment make sure regular bit dimension and compatibility with target matrices.

Advanced making currently consists of surface functionalization with silane coupling agents to improve bond to polymer materials, lowering interfacial slippage and improving composite mechanical buildings.

2.2 Characterization and Efficiency Metrics

Quality control for HGMs relies on a collection of analytical strategies to validate important parameters.

Laser diffraction and scanning electron microscopy (SEM) assess fragment dimension distribution and morphology, while helium pycnometry determines real bit thickness.

Crush stamina is evaluated making use of hydrostatic pressure examinations or single-particle compression in nanoindentation systems.

Mass and touched thickness dimensions notify handling and mixing habits, crucial for industrial formula.

Thermogravimetric analysis (TGA) and differential scanning calorimetry (DSC) assess thermal stability, with most HGMs remaining secure approximately 600– 800 ° C, relying on make-up.

These standardized examinations guarantee batch-to-batch uniformity and allow trusted efficiency forecast in end-use applications.

3. Functional Properties and Multiscale Effects

3.1 Thickness Decrease and Rheological Habits

The primary feature of HGMs is to decrease the density of composite materials without significantly jeopardizing mechanical honesty.

By replacing solid resin or metal with air-filled rounds, formulators achieve weight cost savings of 20– 50% in polymer compounds, adhesives, and concrete systems.

This lightweighting is important in aerospace, marine, and automotive markets, where lowered mass translates to improved gas performance and payload ability.

In fluid systems, HGMs influence rheology; their spherical form decreases thickness compared to irregular fillers, enhancing circulation and moldability, however high loadings can raise thixotropy because of fragment communications.

Proper diffusion is important to stop agglomeration and make certain consistent residential properties throughout the matrix.

3.2 Thermal and Acoustic Insulation Properties

The entrapped air within HGMs supplies outstanding thermal insulation, with reliable thermal conductivity worths as reduced as 0.04– 0.08 W/(m · K), relying on quantity portion and matrix conductivity.

This makes them important in protecting finishes, syntactic foams for subsea pipelines, and fireproof structure materials.

The closed-cell structure additionally hinders convective warm transfer, boosting performance over open-cell foams.

Likewise, the resistance mismatch between glass and air scatters sound waves, providing modest acoustic damping in noise-control applications such as engine rooms and aquatic hulls.

While not as reliable as devoted acoustic foams, their dual function as light-weight fillers and additional dampers adds practical value.

4. Industrial and Arising Applications

4.1 Deep-Sea Design and Oil & Gas Solutions

Among the most demanding applications of HGMs is in syntactic foams for deep-ocean buoyancy modules, where they are installed in epoxy or plastic ester matrices to produce compounds that withstand severe hydrostatic pressure.

These materials keep favorable buoyancy at depths surpassing 6,000 meters, enabling autonomous underwater lorries (AUVs), subsea sensors, and offshore boring devices to operate without heavy flotation tanks.

In oil well sealing, HGMs are added to seal slurries to decrease thickness and protect against fracturing of weak developments, while additionally improving thermal insulation in high-temperature wells.

Their chemical inertness makes sure lasting stability in saline and acidic downhole atmospheres.

4.2 Aerospace, Automotive, and Sustainable Technologies

In aerospace, HGMs are made use of in radar domes, indoor panels, and satellite parts to minimize weight without compromising dimensional stability.

Automotive makers integrate them into body panels, underbody finishings, and battery enclosures for electrical vehicles to enhance power performance and decrease emissions.

Arising uses include 3D printing of lightweight frameworks, where HGM-filled resins enable complex, low-mass components for drones and robotics.

In sustainable building and construction, HGMs enhance the protecting homes of light-weight concrete and plasters, adding to energy-efficient buildings.

Recycled HGMs from hazardous waste streams are also being discovered to enhance the sustainability of composite materials.

Hollow glass microspheres exhibit the power of microstructural engineering to transform mass product buildings.

By integrating low thickness, thermal security, and processability, they allow technologies across aquatic, power, transportation, and environmental sectors.

As product scientific research breakthroughs, HGMs will continue to play an essential function in the development of high-performance, light-weight products for future innovations.
