Introduction to Light Weight Aluminum Nitride Ceramics

Light weight aluminum nitride (AlN) is a high-performance ceramic product that has actually gained prevalent acknowledgment for its exceptional thermal conductivity, electric insulation, and mechanical stability at elevated temperatures. With a hexagonal wurtzite crystal structure, AlN shows an unique mix of residential or commercial properties that make it the most ideal substratum material for applications in electronic devices, optoelectronics, power modules, and high-temperature atmospheres. Its ability to efficiently dissipate heat while keeping outstanding dielectric stamina placements AlN as a remarkable option to conventional ceramic substrates such as alumina and beryllium oxide. This write-up discovers the essential attributes of light weight aluminum nitride porcelains, explores manufacture techniques, and highlights its crucial roles across innovative technological domain names.

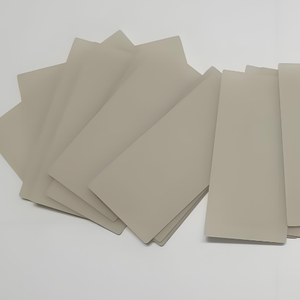

(Aluminum Nitride Ceramics)

Crystal Framework and Basic Residence

The performance of aluminum nitride as a substrate product is greatly dictated by its crystalline framework and intrinsic physical homes. AlN embraces a wurtzite-type lattice made up of rotating aluminum and nitrogen atoms, which contributes to its high thermal conductivity– typically exceeding 180 W/(m · K), with some high-purity examples attaining over 320 W/(m · K). This worth dramatically exceeds those of various other commonly utilized ceramic materials, consisting of alumina (~ 24 W/(m · K) )and silicon carbide (~ 90 W/(m · K)).

In addition to its thermal efficiency, AlN has a broad bandgap of approximately 6.2 eV, causing excellent electrical insulation buildings even at heats. It likewise demonstrates reduced thermal growth (CTE ≈ 4.5 × 10 ⁻⁶/ K), which very closely matches that of silicon and gallium arsenide, making it an optimal match for semiconductor tool product packaging. In addition, AlN exhibits high chemical inertness and resistance to molten steels, boosting its viability for rough environments. These mixed characteristics establish AlN as a prominent prospect for high-power electronic substratums and thermally managed systems.

Construction and Sintering Technologies

Making premium light weight aluminum nitride porcelains needs exact powder synthesis and sintering techniques to attain dense microstructures with minimal contaminations. As a result of its covalent bonding nature, AlN does not easily densify via standard pressureless sintering. For that reason, sintering aids such as yttrium oxide (Y ₂ O FIVE), calcium oxide (CaO), or unusual planet components are normally included in advertise liquid-phase sintering and improve grain limit diffusion.

The construction procedure generally starts with the carbothermal decrease of light weight aluminum oxide in a nitrogen ambience to synthesize AlN powders. These powders are after that milled, shaped by means of techniques like tape casting or injection molding, and sintered at temperatures between 1700 ° C and 1900 ° C under a nitrogen-rich atmosphere. Hot pushing or spark plasma sintering (SPS) can even more enhance density and thermal conductivity by lowering porosity and promoting grain positioning. Advanced additive manufacturing strategies are also being explored to make complex-shaped AlN components with customized thermal administration capabilities.

Application in Electronic Packaging and Power Modules

One of one of the most famous uses light weight aluminum nitride porcelains is in digital packaging, particularly for high-power devices such as insulated gate bipolar transistors (IGBTs), laser diodes, and radio frequency (RF) amplifiers. As power thickness raise in modern electronic devices, efficient heat dissipation comes to be crucial to make certain dependability and durability. AlN substrates supply an optimum solution by integrating high thermal conductivity with outstanding electrical isolation, avoiding short circuits and thermal runaway conditions.

Furthermore, AlN-based straight bound copper (DBC) and active metal brazed (AMB) substratums are progressively utilized in power component styles for electric automobiles, renewable energy inverters, and industrial motor drives. Contrasted to standard alumina or silicon nitride substrates, AlN offers faster warmth transfer and better compatibility with silicon chip coefficients of thermal expansion, consequently lowering mechanical stress and boosting general system performance. Continuous research intends to boost the bonding strength and metallization techniques on AlN surface areas to more increase its application range.

Usage in Optoelectronic and High-Temperature Devices

Beyond digital product packaging, light weight aluminum nitride ceramics play an important role in optoelectronic and high-temperature applications because of their openness to ultraviolet (UV) radiation and thermal security. AlN is extensively made use of as a substrate for deep UV light-emitting diodes (LEDs) and laser diodes, particularly in applications needing sanitation, sensing, and optical interaction. Its wide bandgap and reduced absorption coefficient in the UV range make it a perfect prospect for sustaining light weight aluminum gallium nitride (AlGaN)-based heterostructures.

Additionally, AlN’s capacity to work accurately at temperature levels exceeding 1000 ° C makes it suitable for usage in sensing units, thermoelectric generators, and elements exposed to extreme thermal lots. In aerospace and defense industries, AlN-based sensing unit plans are employed in jet engine surveillance systems and high-temperature control units where traditional products would certainly stop working. Continual improvements in thin-film deposition and epitaxial development methods are broadening the capacity of AlN in next-generation optoelectronic and high-temperature integrated systems.

( Aluminum Nitride Ceramics)

Environmental Stability and Long-Term Integrity

A crucial consideration for any substrate product is its lasting reliability under functional stress and anxieties. Aluminum nitride shows premium environmental stability compared to many various other ceramics. It is highly resistant to rust from acids, antacid, and molten steels, making certain durability in hostile chemical environments. Nonetheless, AlN is prone to hydrolysis when revealed to moisture at elevated temperature levels, which can deteriorate its surface and minimize thermal efficiency.

To mitigate this issue, protective finishings such as silicon nitride (Si two N ₄), aluminum oxide, or polymer-based encapsulation layers are commonly applied to enhance dampness resistance. Furthermore, careful securing and packaging techniques are implemented throughout gadget assembly to maintain the honesty of AlN substratums throughout their service life. As ecological guidelines become extra rigid, the safe nature of AlN also positions it as a preferred choice to beryllium oxide, which positions health and wellness threats during processing and disposal.

Final thought

Light weight aluminum nitride ceramics represent a class of advanced materials uniquely fit to attend to the expanding needs for reliable thermal monitoring and electrical insulation in high-performance digital and optoelectronic systems. Their remarkable thermal conductivity, chemical stability, and compatibility with semiconductor innovations make them one of the most excellent substrate material for a wide range of applications– from automobile power components to deep UV LEDs and high-temperature sensors. As manufacture technologies remain to evolve and cost-effective manufacturing approaches develop, the fostering of AlN substrates is expected to climb substantially, driving development in next-generation digital and photonic devices.
